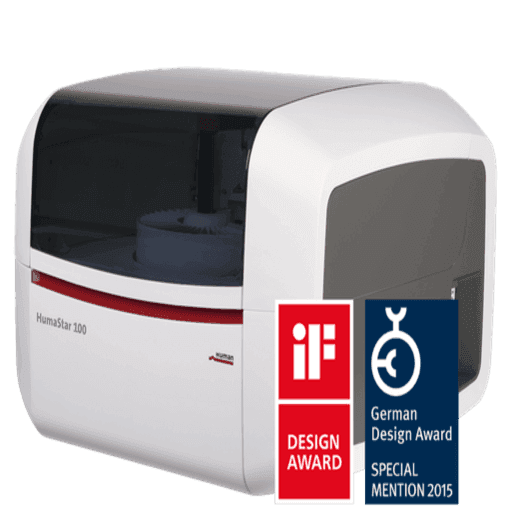

The HumaStar 100 is a compact, fully automated clinical chemistry analyzer designed by HUMAN for small to medium-sized laboratories or emergency departments. It is recognized for its award-winning design (German Design Award) and its focus on economical, autonomous operation.

Key Features

• Exceptional Efficiency: Features an extraordinarily low water consumption of less than 1 liter per hour, allowing the lab to operate independently of dedicated water supply units.
• Smart Reagent Management: Includes 30 reagent positions with cooling that operates independently of the main power switch, ensuring reagent stability 24/7.
• User-Centric Software: Equipped with intuitive software optimized for touchscreen use, featuring an intelligent flagging system and an extensive error log for high-level troubleshooting.
• Versatile Loading: Supports continuous sample loading and STAT processing at any time, which is critical for emergency laboratory environments.
• Integrated Safety: Features a needle shock detector and capacitive liquid level sensors to prevent mechanical damage and ensure accurate pipetting.

Technical Specifications

• Throughput: Constant 100 tests per hour.
• Operation Mode: Random-access, Batch, STAT
• Sample Capacity: 60 positions (primary tubes 12.5 x 100 mm and 10 mm cups)
• Reagent Capacity: 30 positions (removable tray; 20 ml and 50 ml bottles)
• Optical System: 9 discrete wavelengths (340, 405, 505, 546, 578, 600, 650, 700 nm + 1 free)
• Reaction System: 80 reusable Bionex® cuvettes with an 8-step wash station
• Water Consumption: < 1 L/h (approx. 8 ml per test)
• Connectivity: ASTM Bi-directional LIS via Ethernet
• Dimensions (W x D x H): 69 x 76 x 52 cm
• Weight: 51 kg (Net)
